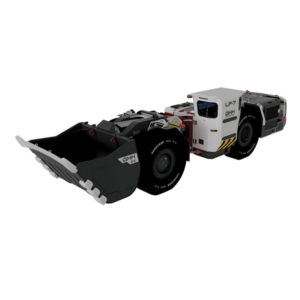

LHD - LF-7

MAIN FEATURES

• Improved operator safety, ergonomics and comfort
• Vehicle height 2 200 mm
• Best in class loading performance
• ROPS/FOPS certified canopy
• The extremely robust frame and system design resulting in lowest operating cost
• Enclosed canopy for better operator comfort
• Customized buckets available optimized for hard rock applications
• GET available mechanical or weld on
• Excellent Traction
• Separate brake flushing circuit
• PDS (Personnel Detection System) interface
• CANBUS electronics
• Payload capacity 7 000 kg

MAIN DIMENSIONS

• Length (tramming position) 8 800 mm
• Length (loading position) 9 161 mm
• Width (at cabin) 2 314 mm
• Width (at drive unit) 1 999 mm
• Width (at bucket) 2 240 mm
• Height, laden (above drive unit) 1 591 mm
• Height, laden (above driver’s canopy) 2 200 mm
• Max. tipping height 2 039 mm
• Bucket capacity (SAE heaped/ SG Specific) 3.6 m³ 

TRAMMING CAPACITIES

Max. tramming speed (laden fwd/rev, on level road)

• 1st gear 5.1+-0.2km/h
• 2nd gear 10.1+-0.2km/h
• 3rd gear 17.0+-0.2km/h
• 4th gear Option
• Ambient operating temperatures -20 to + 53C
• Standard operating altitude(Tier 3) -1,500m to + 4,000m
• Standard operating altitude(Tier 5) -1,500m to + 4,000m
• Max. slope   25%
• Max. cross slope   15%
