LHD - LF-3
WATER COOLED

MAIN FEATURES

• Compact and powerful design for narrow veins.
• Proven technology for hard rock and tunnelling applications.
• Design update of worldwide well-tried machine.
• Extremely robust GHH frame and system design resulting in lowest operating cost.
• ROPS/FOPS approved canopy.
• Customised buckets.
• PDS Compliant.
• Payload capacity 3 500 kg

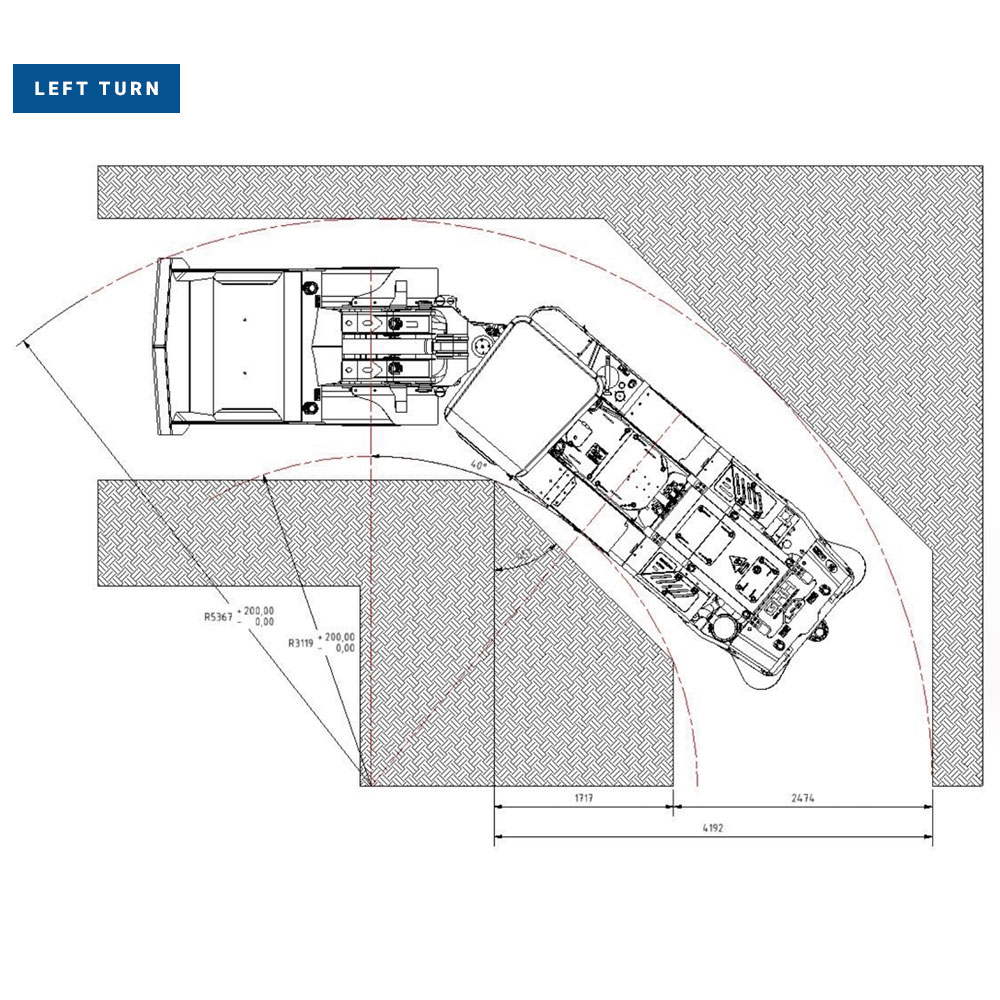

MAIN DIMENSIONS

• Length (tramming position) 7 308 mm
• Length (loading position) 7 561 mm
• Width (at cabin) 1 499 mm
• Width (at drive unit) 1 524 mm
• Width (at bucket) 1 499 mm
• Height, laden (above drive unit) 1 494 mm
• Height, laden (above driver’s canopy) 1 850 mm
• Max. tipping height 769 mm
• Standard bucket capacity (SAE) 1.5 m³

TRAMMING CAPACITIES

Max. tramming speed (laden fwd./rev, on level road)
1st gear – 3.9 km/h
2nd gear – 7.4 km/h
3rd gear – 17.0 km/h
Maximum admissible gradient – 28%
Maximum tractive force – 120(*117) kN
